How to select the correct products, follow these steps:
Step 1 Measure O.D.: Find the outside dimension of the tube by measuring the distance between end to end.
Step 2 measure I.D.: Find the inside dimension of the tube by measuring the distance between end to end.
Step 3 Wall thickness : (O.D.-I.D.) / 2.
If you have further questions, feel free to let us know. We are happy to help you.
|
Platform material |
Steel / Zinc plated (Cr3+) |
Steel / Zinc plated (Cr3+) |
|
Clip material |
Steel / black oxide |
Steel / black oxide |
|
Tube thickness |
14-18ga (≒1.2-1.9mm) |
14-18ga (≒1.2-1.9mm) |
|
Platform shape |
fit round tube |
fit square tube |
|
Min. order |
5,000 pieces |
5,000 pieces |
|
Trade term |
FOB Taiwan |
FOB Taiwan |
Specifications:
Round platform to fit round tube
|
Hole Dimension |
Part no. |
Outside dimension of the tube |
|
11mm / 0.4375 inch |
F305-22 |
22mm / 0.875 inch |
|
F305-25 |
25mm / 1 inch |
|
|
F305-28 |
28mm / 1.125 inch |
|
|
F305-32 |
32mm / 1.25 inch |
|
|
F305-38 |
38mm / 1.5 inch |
|
|
F305-44 |
44mm/ 1.75 inch |
|
|
F305-50 |
50mm /2 inch |
Square platform to fit square tube
|
Hole Dimension |
Part no. |
Outside dimension of the tube |
|
11mm / 0.4375 inch |
F307-22 |
22mm / 0.875 inch |
|
F307-25 |
25mm / 1 inch |
|
|
F307-28 |
28mm / 1.125 inch |
|
|
F307-32 |
32mm / 1.25 inch |
|
|
F307-38 |
38mm / 1.5 inch |
|
|
F307-44 |
44mm/ 1.75 inch |
|
|
F307-50 |
50mm /2 inch |

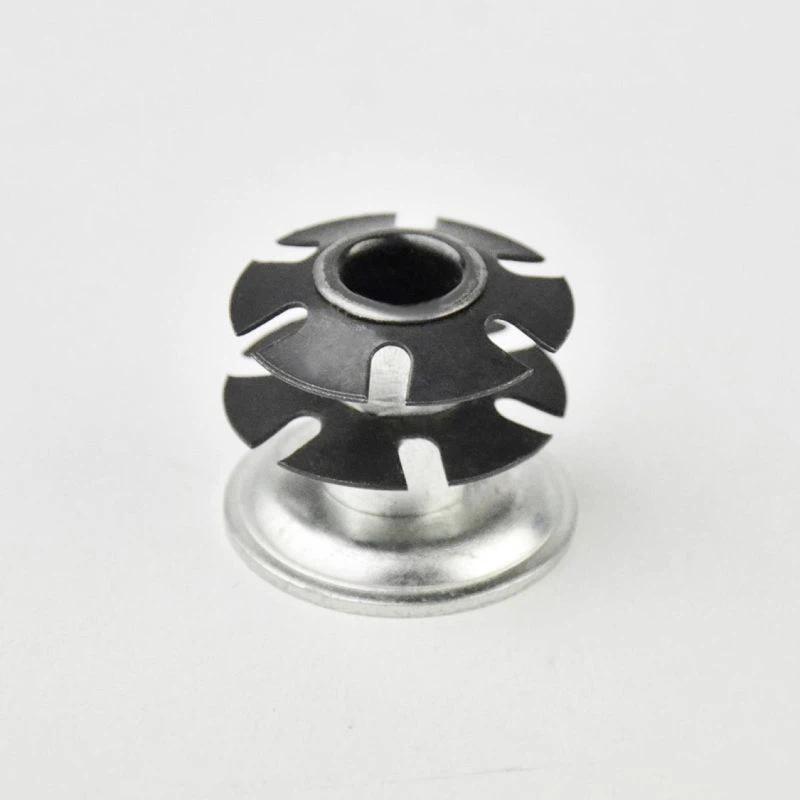

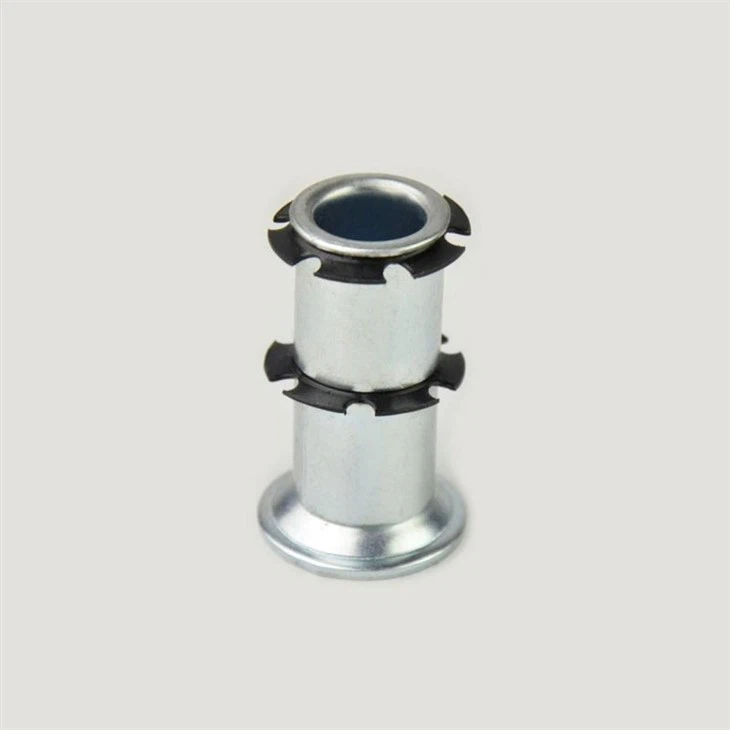

Square or Round Single/ Double Star Metal Caster Insert with Socket Stem
Price
Please leave your product information and quantity, we will quote your reference as soon as possible.
Product information
Diameter: 7/8”、 1”、1-1/8”、 1-1/4”、 1-1/2” 、1-3/4” 、2”
Description:
The Star caster insert is firmly inserted into the pipe and is not easy to disassemble. Specially designed for deep pipes, can turn over thresholds, extend lines, etc.

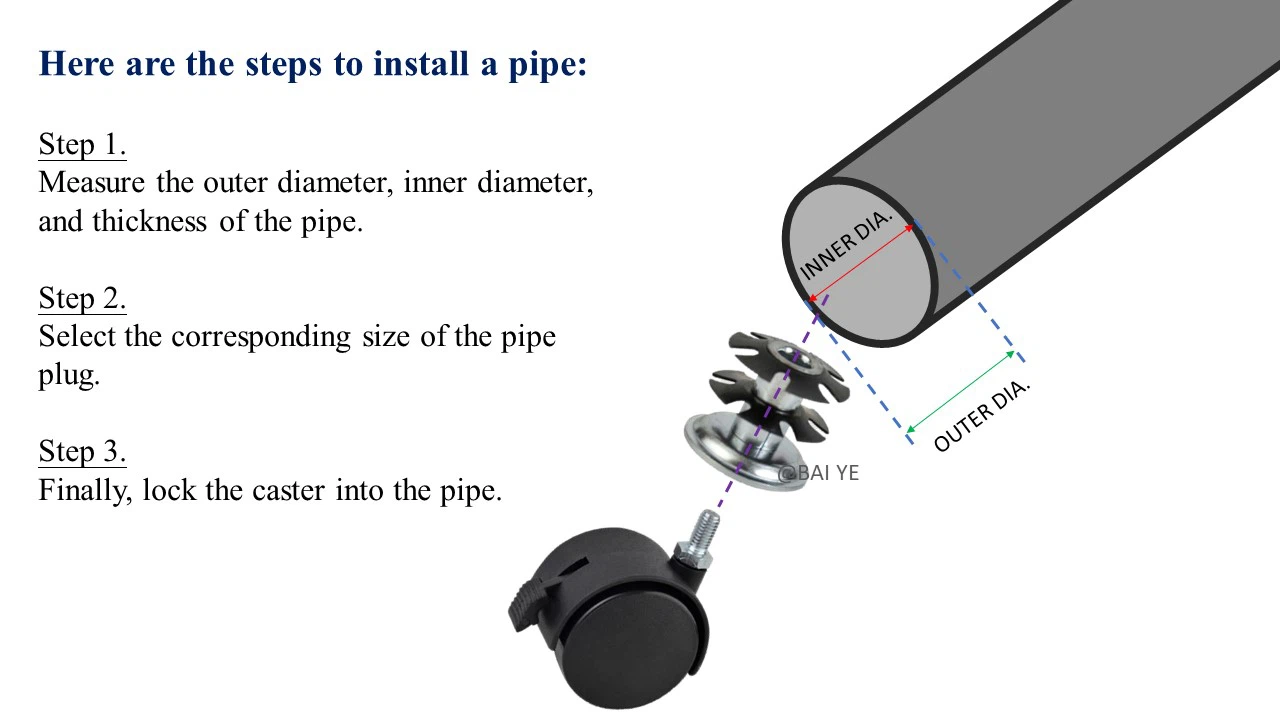

How to install it?
How to place the order?
Minimum order quantity (MOQ): 5,000 pieces/box of standard insert, please do not hesitate to contact us by e-mail.
Delivery time: about 45-60 working days for standard insert.
Payment method: T / T
Packing: standard export packing/ customized packing
Transportation: multiple modes of transportation.
FAQ
Q: Can l visit your factory?
A: We are happily welcome. Feel free to let us know your schedule in Taiwan, we can arrange a hotel and car to pick you up.
Q: Have you had the experience of working with customers overseas?
A: We have built business relationships with foreign customers for over 20 years. Our customers are from North America, Australia, New Zealand, Korea, and Thailand. We look forward to expanding more business worldwide.
Q: What is your advantage compared with your competitors?
A:(1) High quality
(2) High-efficiency productivity
(3) One-stop service
Q: How long is your delivery time?
A: Generally, it takes 7-14 days after receipt of your order if the parts are in stock. If there is no stock, the standard products take 60 days or sooner, it depends on the quantity.
Q: What are your trade terms?
A: We usually quote the price based on FOB Taiwan. If you would like to change other trade terms just let us know in advance.
