Ball caster wheel:
|
Wheel material |
Plastic |
|
Stem material |
Steel |
|
Finished |
Zinc trivalent chromium (Cr3+) |
|
Min. order |
2,000 pieces |
|
Packing |
Bulk carton |
|
Packing information |
100 pieces/cartons |
|
Trade term |
FOB Taiwan |
Specifications:
Bolt thread stem size: 1/4-20 , 5/16-18 , 3/8-16 , M6 , M8 , M10
Available thread lengths are 15mm and 19mm.
Plate size (mm): 38x38 , 42x42 , 50x50 , 51x31
Friction ring stem size (mm): 11x22 (wire ring), 11x38 (brass ring)
Grip neck stem size (mm): 8x38
Ball caster wheel:
|
Part no. |
Diameter |
Mount type |
Dynamic loading capacity (one unit) |
|
BC35 |
35mm |
Thread stem |
22 lbs / 10 kgs |
|
BC40 |
40mm |
Thread stem |
44 lbs / 20 kgs |
|
BC50 |
50mm |
Thread stem |
55 lbs / 25 kgs |
|
Part no. |
Diameter |
Mount type |
Dynamic loading capacity (one unit) |
|
BC35 |
35mm |
Plate mount |
22 lbs / 10 kgs |
|
BC40 |
40mm |
Plate mount |
44 lbs / 20 kgs |
|
BC50 |
50mm |
Plate mount |
55 lbs / 25 kgs |
|
Part no. |
Diameter |
Mount type |
Dynamic loading capacity (one unit) |
|
BC35 |
35mm |
Friction ring stem mount |
22 lbs / 10 kgs |
|
BC40 |
40mm |
Friction ring stem mount |
44 lbs / 20 kgs |
|
BC50 |
50mm |
Friction ring stem mount |
55 lbs / 25 kgs |
|
Part no. |
Diameter |
Mount type |
Dynamic loading capacity (one unit) |
|
BC35 |
35mm |
Grip neck stem mount |
22 lbs / 10 kgs |
|
BC40 |
40mm |
Grip neck stem mount |
44 lbs / 20 kgs |
|
BC50 |
50mm |
Grip neck stem mount |
55 lbs / 25 kgs |

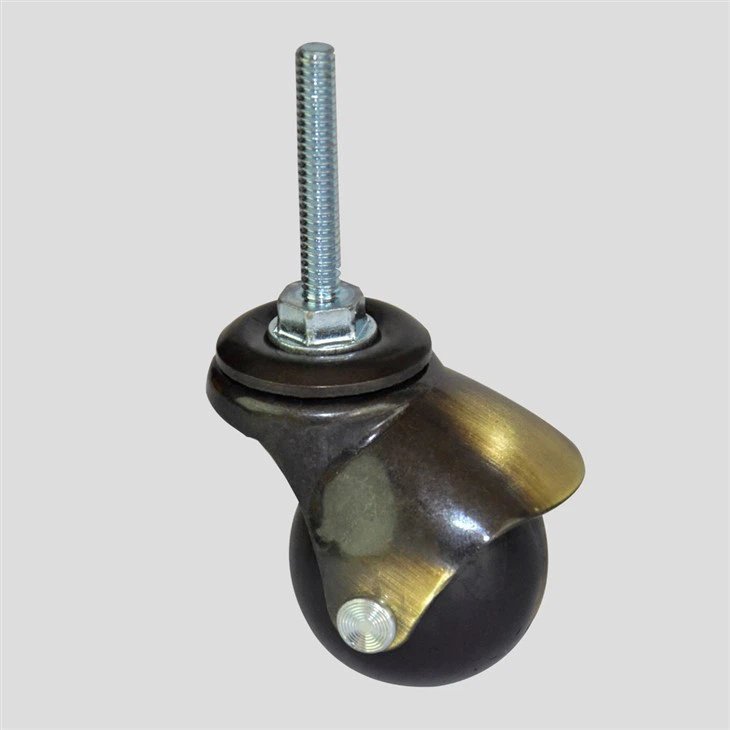

35/40/50MM ball caster wheel with Plate/ Bolt/ FRS / Socket Stem
Price
Let us know your requirements and quantity, we will offer a competitive price for your reference as soon as possible.
Product information
Wheel Diameter: 35mm/40mm/50mm
Material: Ball caster wheels are made of PP material and consist of heavy-duty steel construction (including 4 different stems) Use a ball-casters wheel to DIY or repair your own furniture, enjoying DIY pleasure time.
Smooth surfaces and mute casters help you protect hardwood floors or carpets against scratches.
Dimension and Loading Capacity :
Each caster carries up to 55 lbs (25kgs) capacity.
Multi-application:
Perfect replacement for office chairs, small sofas, cabinets, ottomans, coffee tables, plant stands, shoe bins, toy bins, and other furniture.
How to install casters?
How to Select Casters?
Certificate
Quality
How to place the order?
Minimum order quantity (MOQ): 2,000 pieces
Delivery time: about 30 working days for standard casters
Payment method: T / T
Packing: standard export packing/ customized packing
Transportation: multiple modes of transportation.
FAQ
Q: Is your factory available for visiting?
A: Absolutely yes, we welcome you to visit our factory.
Q: How shall I contact the sales representative?
A: You can send us an e-mail directly at judy@ku-ping.com.tw or leave your information in the inquiry form.
Q: What is the material of the main product?
A: We use Nylon, PP, PU, and steel in the majority. Some special parts are made of aluminum, zinc alloy, and brass. We can make different materials as per customers’ requirements.
Q: How to control your quality?
A: We implement ISO 9001 all the time to make sure that we give our customers the greatest quality products.
Q: How can I get the after-service?
A: You can contact us directly via e-mail at judy@ku-ping.com.tw or use an online service. Feel free to let us know your question or any requirement.
